The SAM Air Intake Room

Luna Powell attaches joist hangers for the SAM Air Intake Room at Biosphere 2

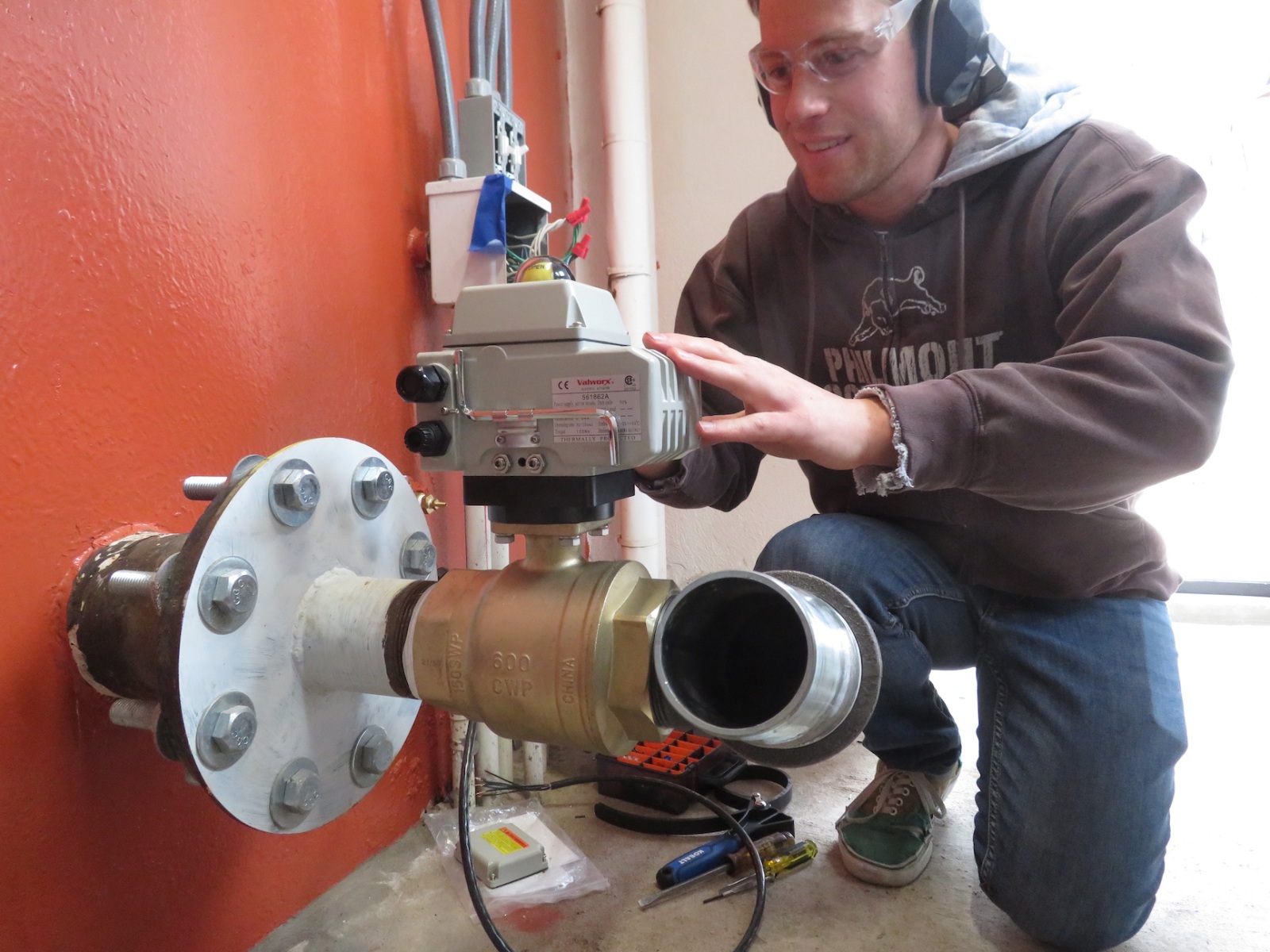

With the original use of the Test Module (1987-1990) the heat exchanger suspended from the space frame was fed temperature controlled water from an adjacent building via underground copper tubes. The air brought into the lung by means of the blower was also, originally introduced in the same adjacent facility.

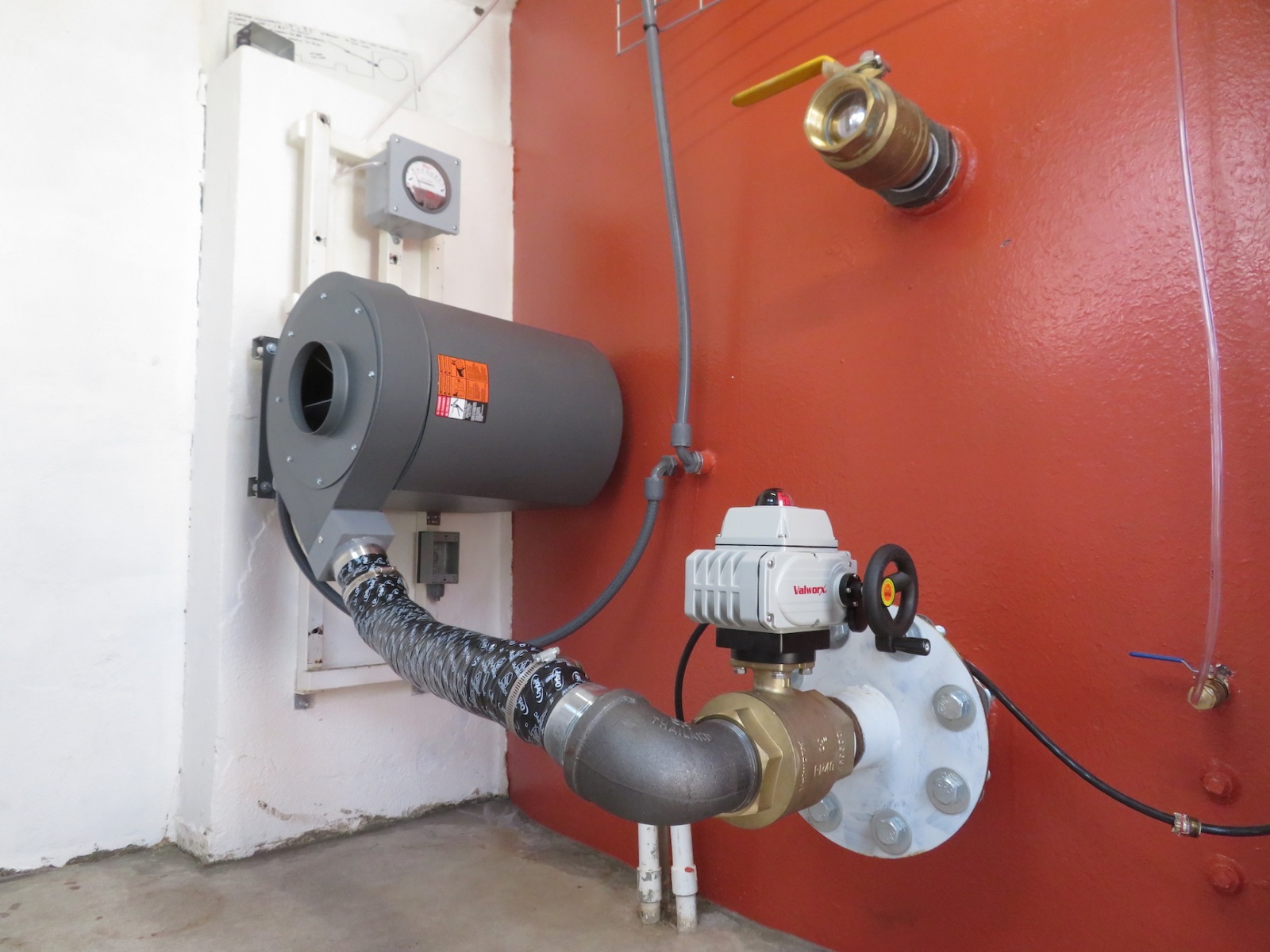

Over the course of thirty years of disuse the desert took over, rendering that building as unfit for air intake (to be kind). As such, in June of 2021 Trent and Kai removed the blower, cleaned it thoroughly, and remounted it on an exterior, concrete wall of the lung structure. And after thirty years it still worked flawlessly!

The concrete structure supporting the south, steel wall of the lung appears to have had a design intent greater than what was completed, for several pieces of half inch rebar remained exposed, and a hip-high concrete block wall remained unfinished. It also appears a door was intended, but never installed.

As it is very important to the health of the crew and science conducted that the quality of air be maintained to the highest standards. As such, the SAM team set out to build the SAM Air Intake Room (with the very clever acronym “AIR”). For any of you who have built a wood frame to fit an existing, not-a-single-corner-is-square construction, the effort is as much creativity as it is proper framing.

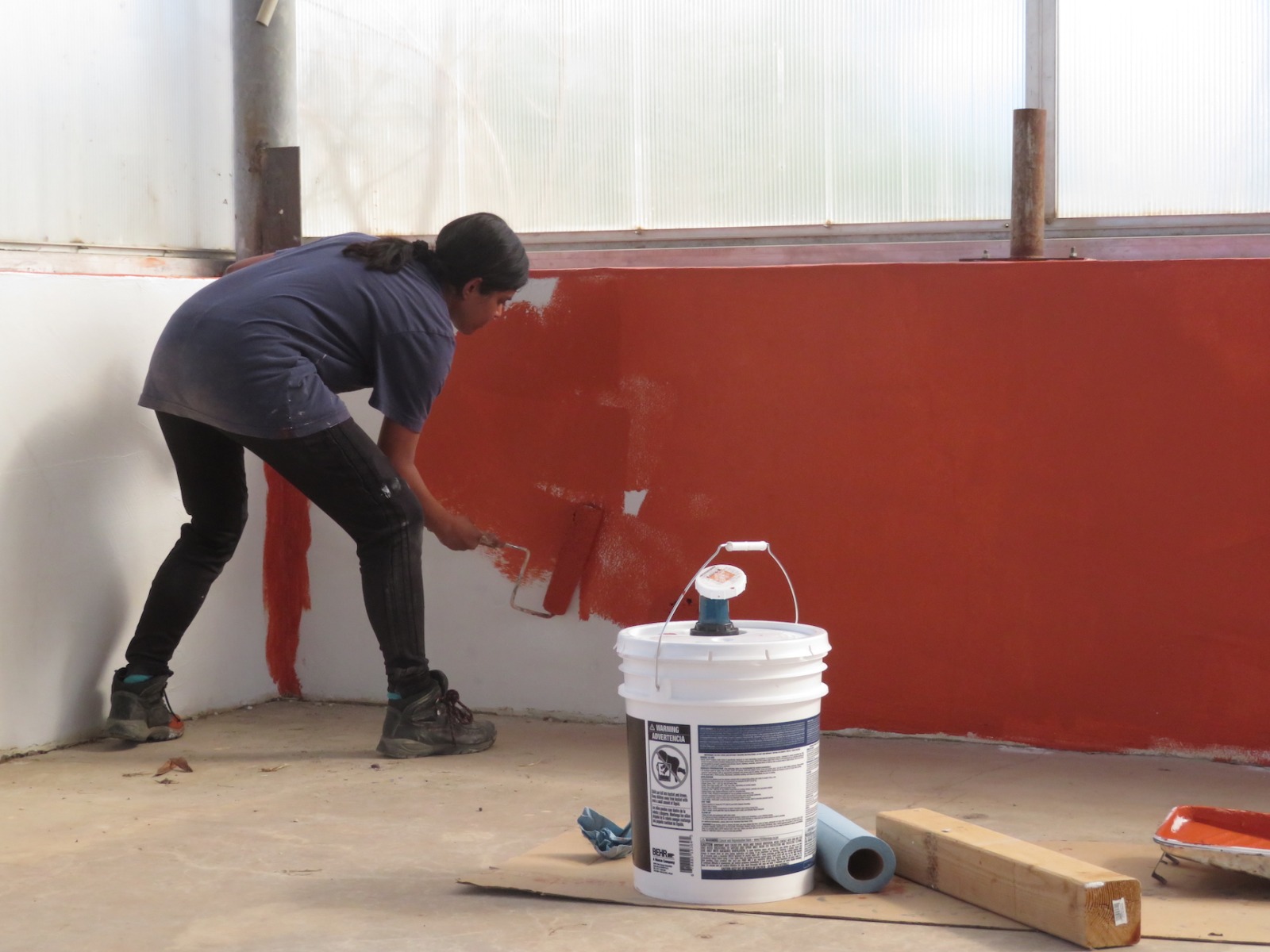

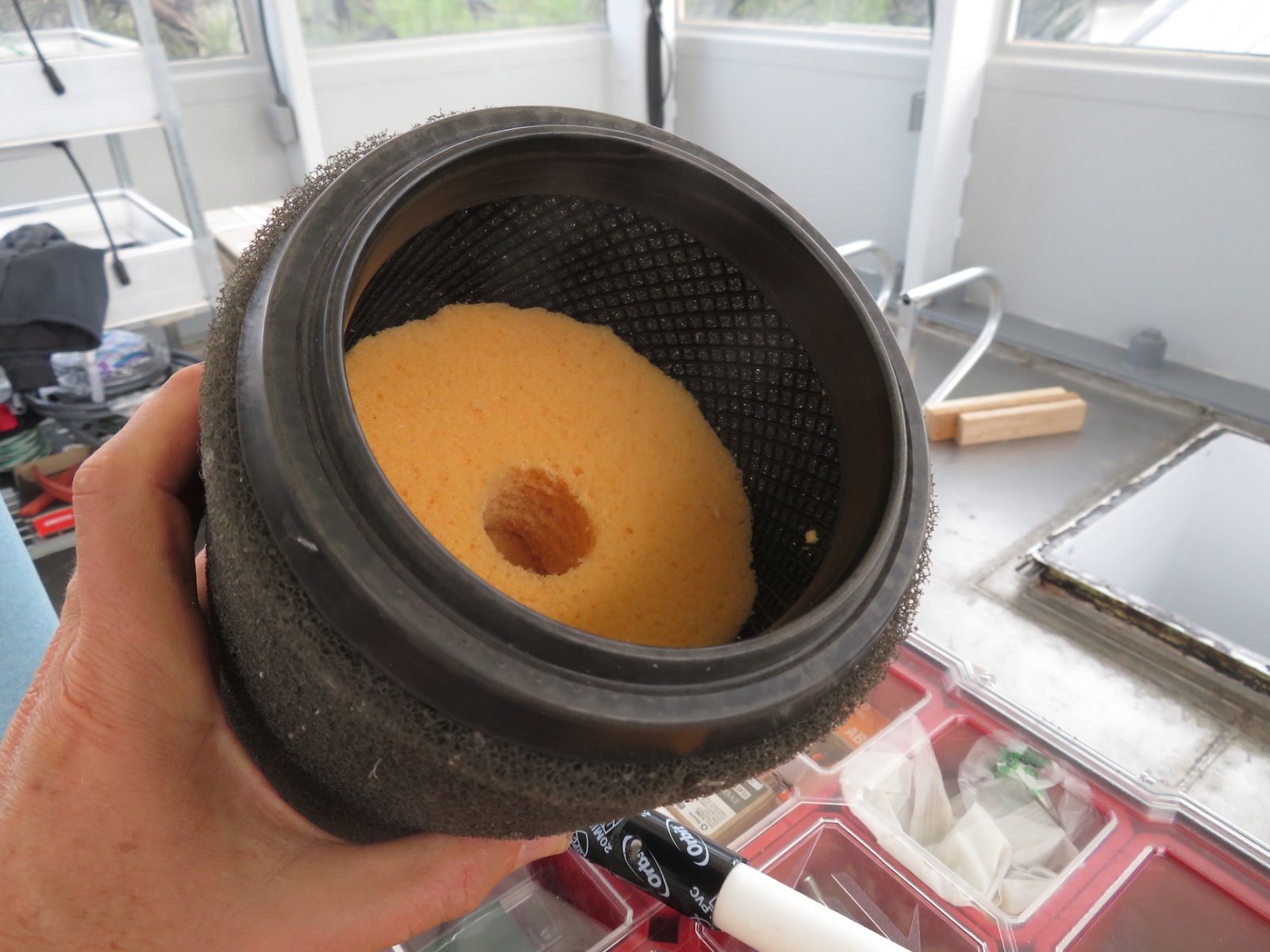

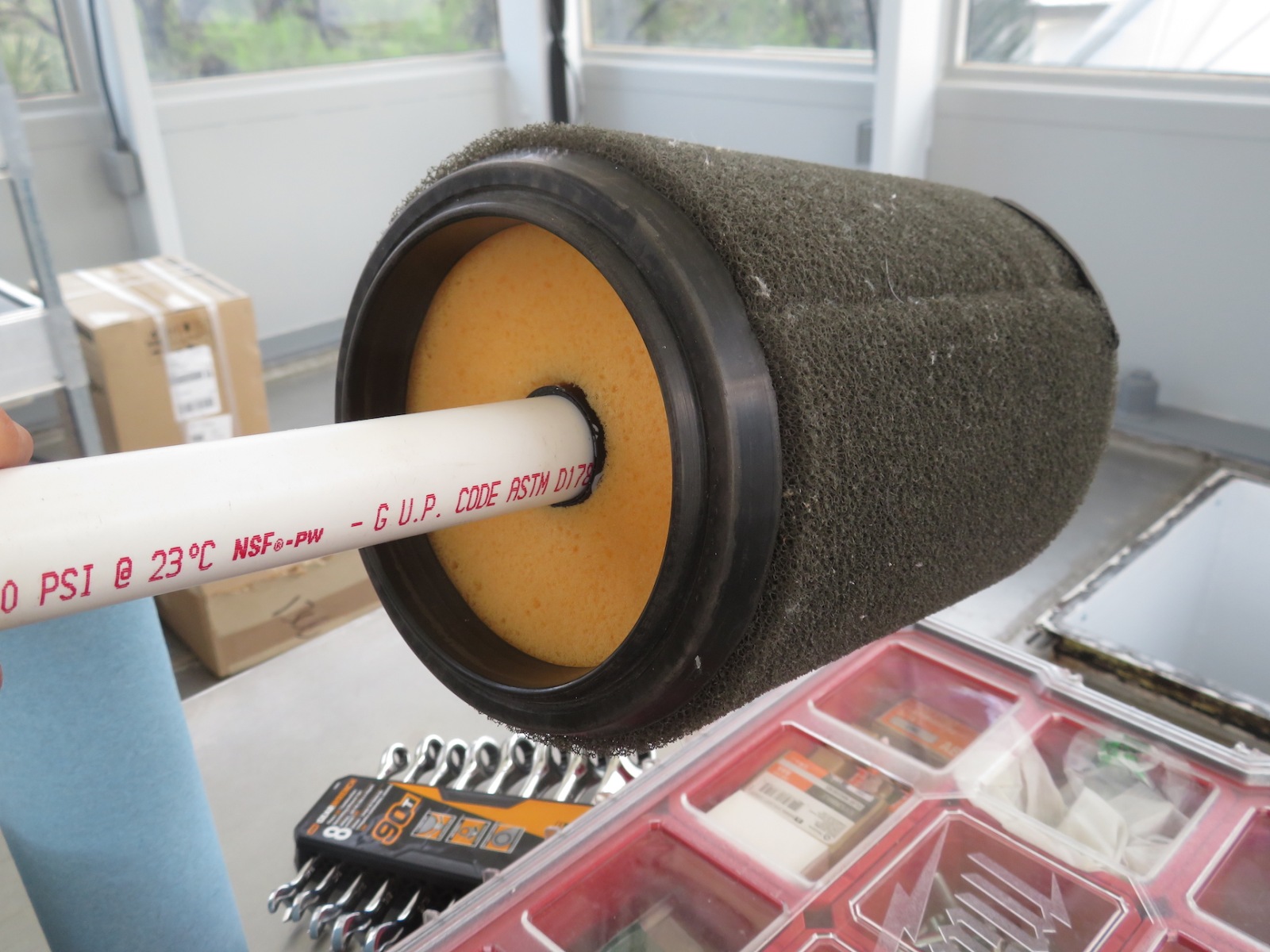

John Z painting the SAM Air Intake Room at Biosphere 2 What we had hoped to be a solid week and a day or so became two full weeks with the steel door yet to be hung. But in the end, John Z., Luna, Elie, Colleen and Kai have transformed what was an unpleasant space into something quite professional. Once complete, the air entering the SAM lung will pass through a HEPA particle filter and then one or two activated carbon filters before entering the blower and lung. The flow rate and quality of air will be monitored and recorded using a sensor array tied to SIMOC, now in its final development by an Arizona State University Computer Science Capstone team.

By |2022-04-05T07:04:31+00:00March 30th, 2022|Categories: Construction|0 Comments

Framing the bridge

Framing the 40 to 20 foot container bridge

Kai joinst steel studs to the top ledger in the 20 foot workshop of SAM at Biosphere 2 While shipping containers ‘air tight’ (or close to), creating a pressurized seal between two shipping containers is a unique challenge. Our 40 foot refrigerated unit has a corrugated stainless steel interior wall, two inches of expansion foam, and a flat aluminum exterior wall. The 20 foot container is composed of heavy, corrugated steel without insulation. No simple manner connects these dissimilar shapes and materials; no computer model can automatically deliver the obvious solution. Rather, hands-on experimentation is required to design the most effective interface.

The end of the 20 foot workshop is framed in at SAM, Biosphere 2 In 1986 the Biospherians developed systems to maintain a pressure seal, meaning they didn’t just glob a massive amount of silicon across every interface but considered how to best retain the internal air with the least chance of failure. The 3/4″ “U” channel, backer bead, and Dow-Corning 795 silicone proved to be an effective, long-term solution that thirty three years later yet holds a pressure seal. We are working toward something similar, looking at the interface between sheets of steel as an interface, not just a joint between two planes. It’s not easy.

The doors of the 20 foot shipping container were removed. We are now constructing a steel stud and plate wall that will offer a solid, stable, pressure tight exterior interface and support the 40 foot container to 20 foot container air-tight bridge for the mission participants, enabling them to move readily between the Crew Quarters and Workshop, accordingly.

By |2022-07-12T01:57:39+00:00March 18th, 2022|Categories: Construction|0 Comments

Installing the steel floor

Kai cuts a steel panel at SAM, Biosphere 2

Steel plate workshop floor at SAM, Biosphere 2 In the third week of January we installed the first four of five layers of the 20 foot shipping container floor. As described in a prior post, this multi-layer effort serves four purposes: a) to keep pack rats from chewing through the bottom, b) provide strength, c) to provide insulation, and d) to seal the plywood and glue outside of the breathable air space. In this respect, the floor is in and of itself part of the experiment as it differs from both the Test Module (stainless steel) and 40 foot shipping container (insulated undercarriage, aluminum rails, and cork-backed Marmoleum). Each floor will serve a different purpose. Each floor will behave and age in a different manner.

We desire to learn how various floor surfaces are to clean and maintain. How do the research teams feel when walking on them with hab shoes, in socks, and barefoot? Which will hold up to the shuffle of equipment and furniture, the unintentional spilling of water, and the repelling of dust from the Mars yard?

John and Luna prep'ng the steel floor panels at SAM, Biosphere 2 Elie cleaning the steel floor panels at SAM, Biosphere 2 Kai priming the steel floor panels at SAM, Biosphere 2 PVC tape seal between the OSB and steel panels at SAM, Biosphere 2

By |2022-11-12T03:49:18+00:00March 17th, 2022|Categories: Construction|0 Comments

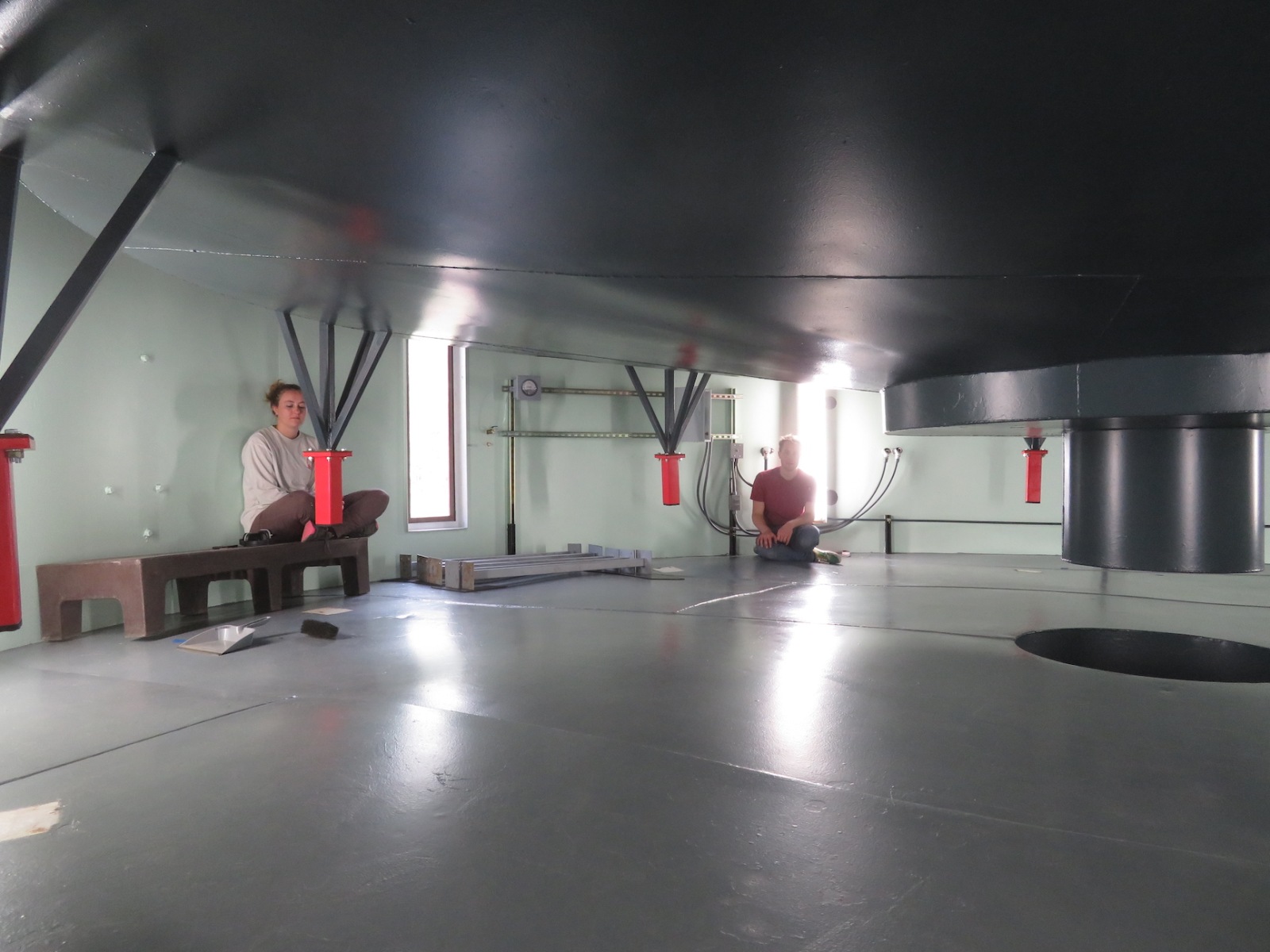

Back to the lung

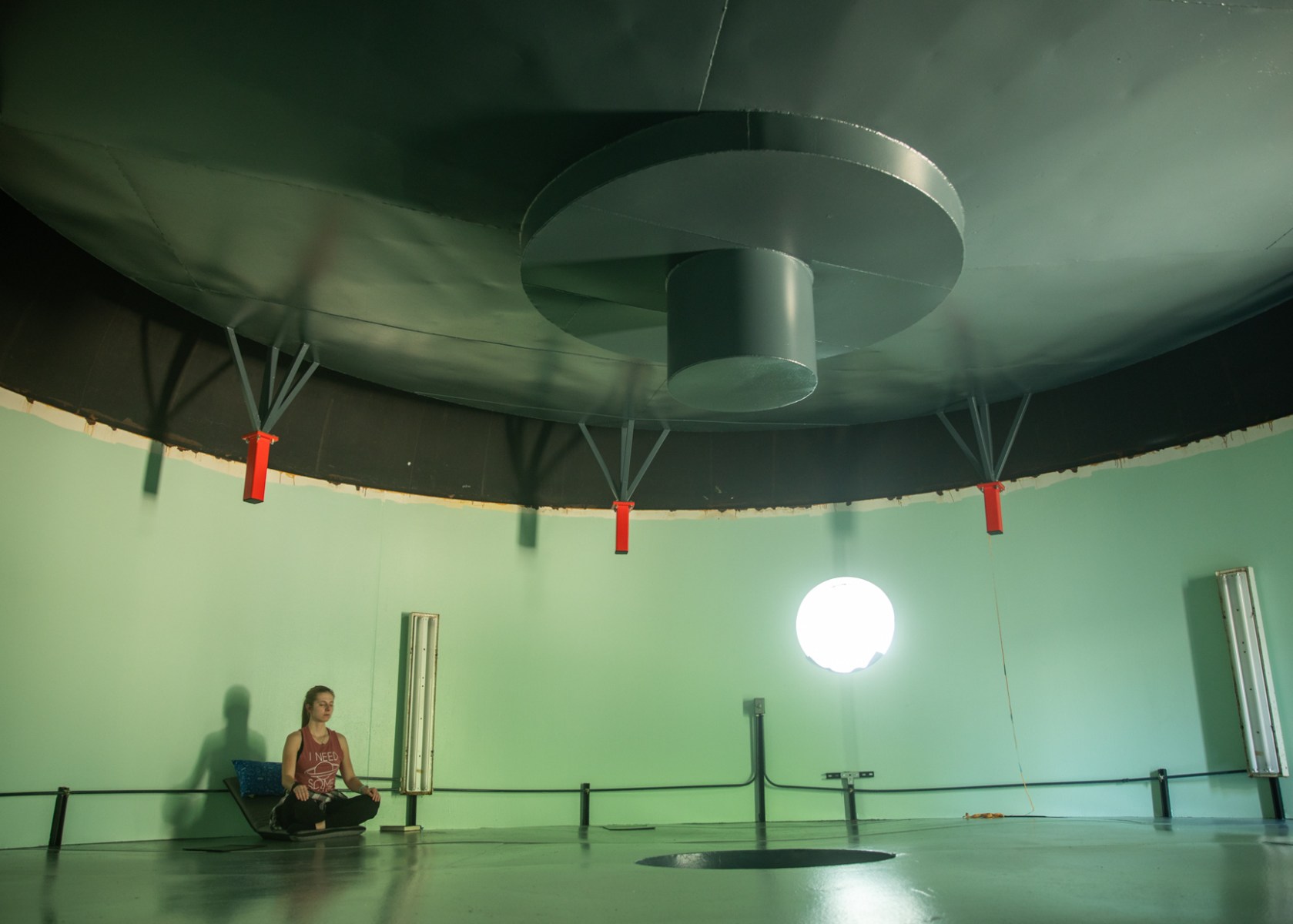

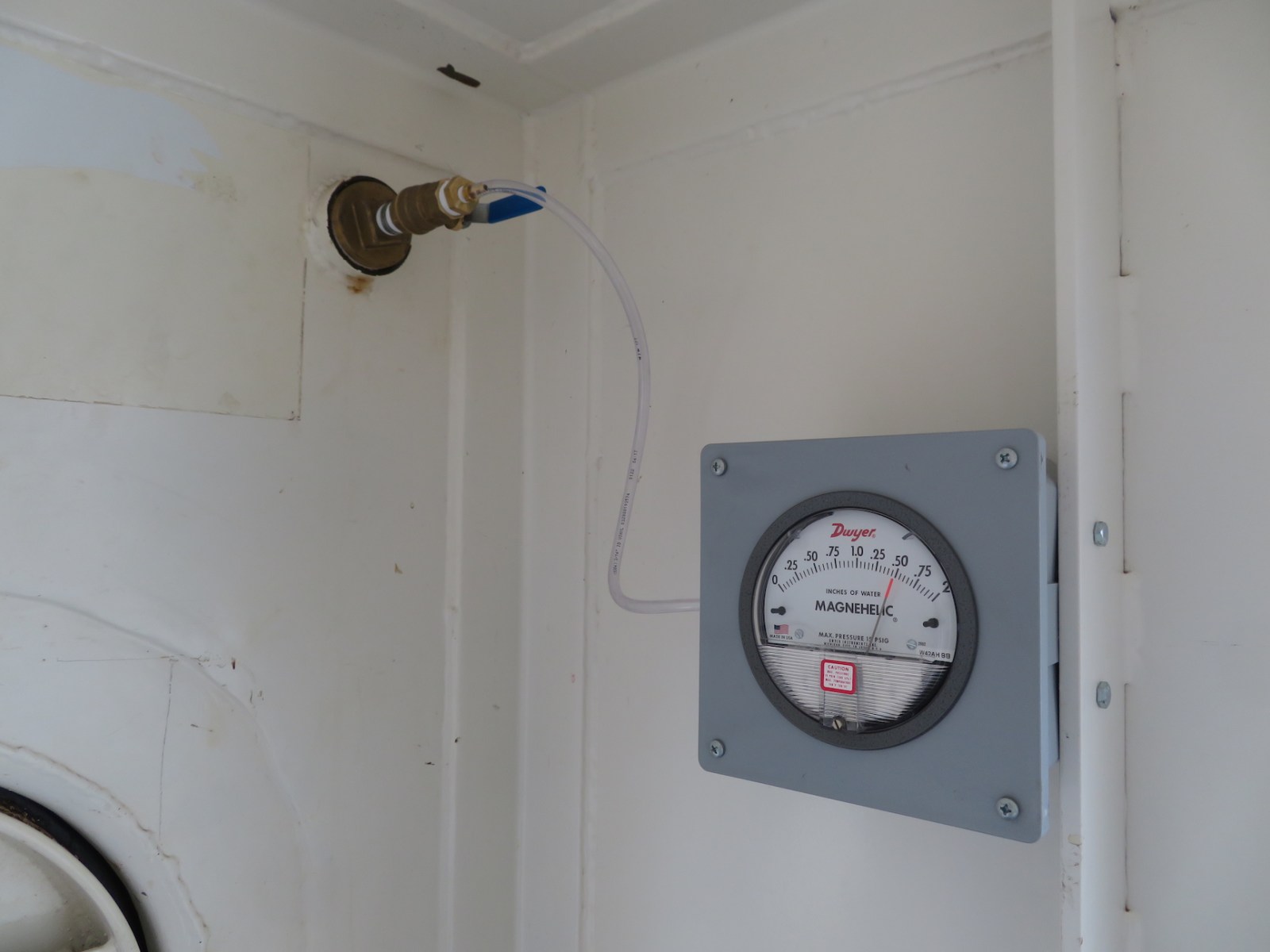

Luna prepares the Test Module lung for paint at SAM, Biosphere 2 As long as there is moisture in some form and iron atoms awaiting a bond, rust will form (Mars is a great example, on a very large scale). The Test Module lung was not designed to last for three decades, as the shell over top was not water tight and the pan beneath suffered from heavy rust. The SAM team has spent a great deal of time grinding, sanding, priming, painting, and sealing this structure over the past year in order that it might continue to provide an internal, positive pressure to SAM.

Volunteers Luna Powell and Elie Danziger removed the last bits of loose rust on the upper lung pan. This involved a pass with steel scrapers and sixty grit paper on an orbital sander. They then applied a coat of Rust-Oleum direct-to-rust primer before the final enamel will bring this historic structure back to life.

Elie prepares the Test Module lung for paint at SAM, Biosphere 2 The Rust-Oleum primer has proved itself time and again at SAM as a go-to solution for otherwise challenging, heavily rusted steel. While it is an oil base, it has almost no odor after just 24 hours curing and can be top-coated with oil or water base paints (which is unusual). What’s more, the back of the can has an 800 phone number that is answered by a real, live human who actually knows what he or she is talking about! If only all products had this kind of support. (No, Rust-Oleum did not sponsor this post, but they should!)

By |2022-03-24T07:24:33+00:00March 11th, 2022|Categories: Construction|0 Comments

Cutting a new door

Luna Powell removes rivots at SAM, Biosphere 2

Kai and Colleen cut a doorway from the crew quarters into the workshop at SAM, Biosphere 2 Kai and Colleen cut a doorway from the crew quarters into the workshop at SAM, Biosphere 2 Kai and Colleen cut a doorway from the crew quarters into the workshop at SAM, Biosphere 2 Kai and Colleen cut a doorway from the crew quarters into the workshop at SAM, Biosphere 2

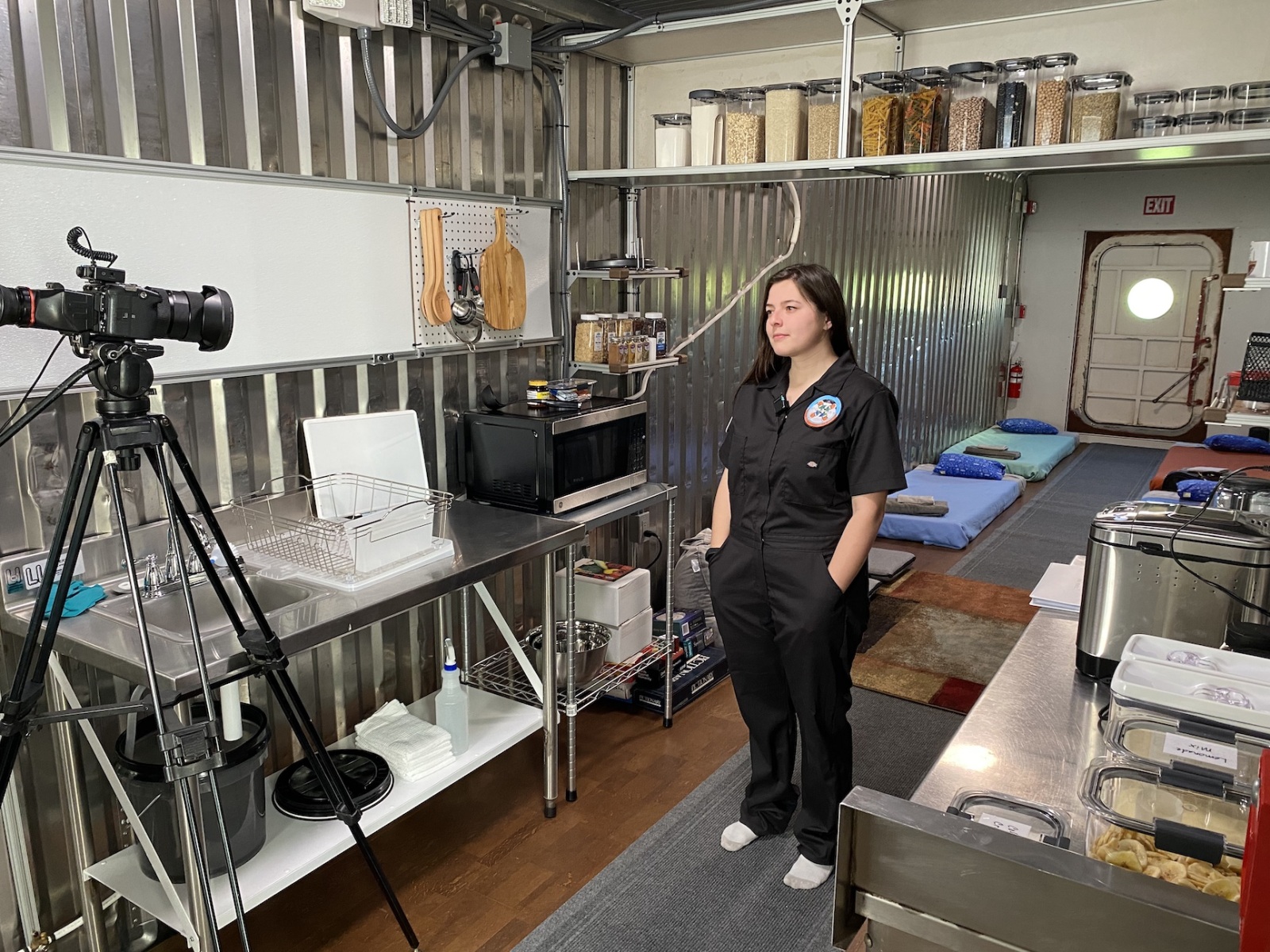

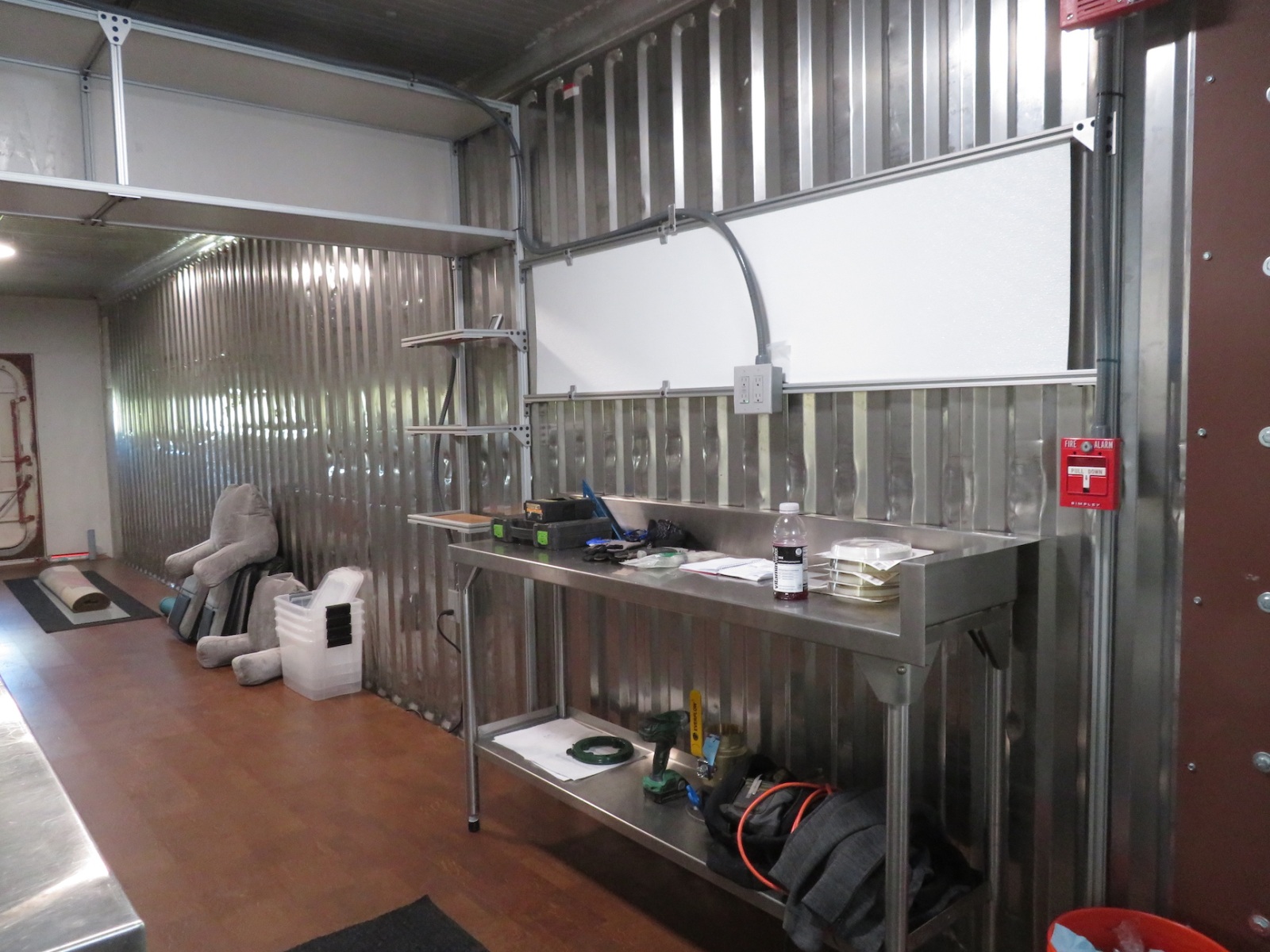

Between the Crew Quarters (40′ shipping container) and Workshop (20′ shipping container) there will be a bridge. It will not offer a pressure door, although we may add a standard interior door for the sake of noise mitigation from the Workshop into the Crew Quarters. We have given this passage a good deal of consideration, with concern for the width and height being such that the average crew member does not have to mind his or her head or shoulders when moving tools or supplies, yet the passage is not so large that it cannot be closed. The step-up height is identical to that into the airlock, so the crew will be accustomed to the motion. The bridge must hold a hermetic seal, be insulated (as with the rest of the living space), and offer a stable, non-slip floor plate.

Colleen removes a foam panel from SAM at Biosphere 2 The first effort was to remove a 34″ wide by 72″ tall door way. Kai applied the cutting wheel while Colleen and our new volunteer Luna Powell took turns with the angle grinder to remove the rivets. We then peeled the exterior aluminum and interior stainless steel skins from the foam, used a reciprocating saber (“saws-all”) to complete the cut across the full depth, and pushed the foam panel out of the wall space.

By |2022-03-22T14:05:35+00:00March 8th, 2022|Categories: Construction|0 Comments

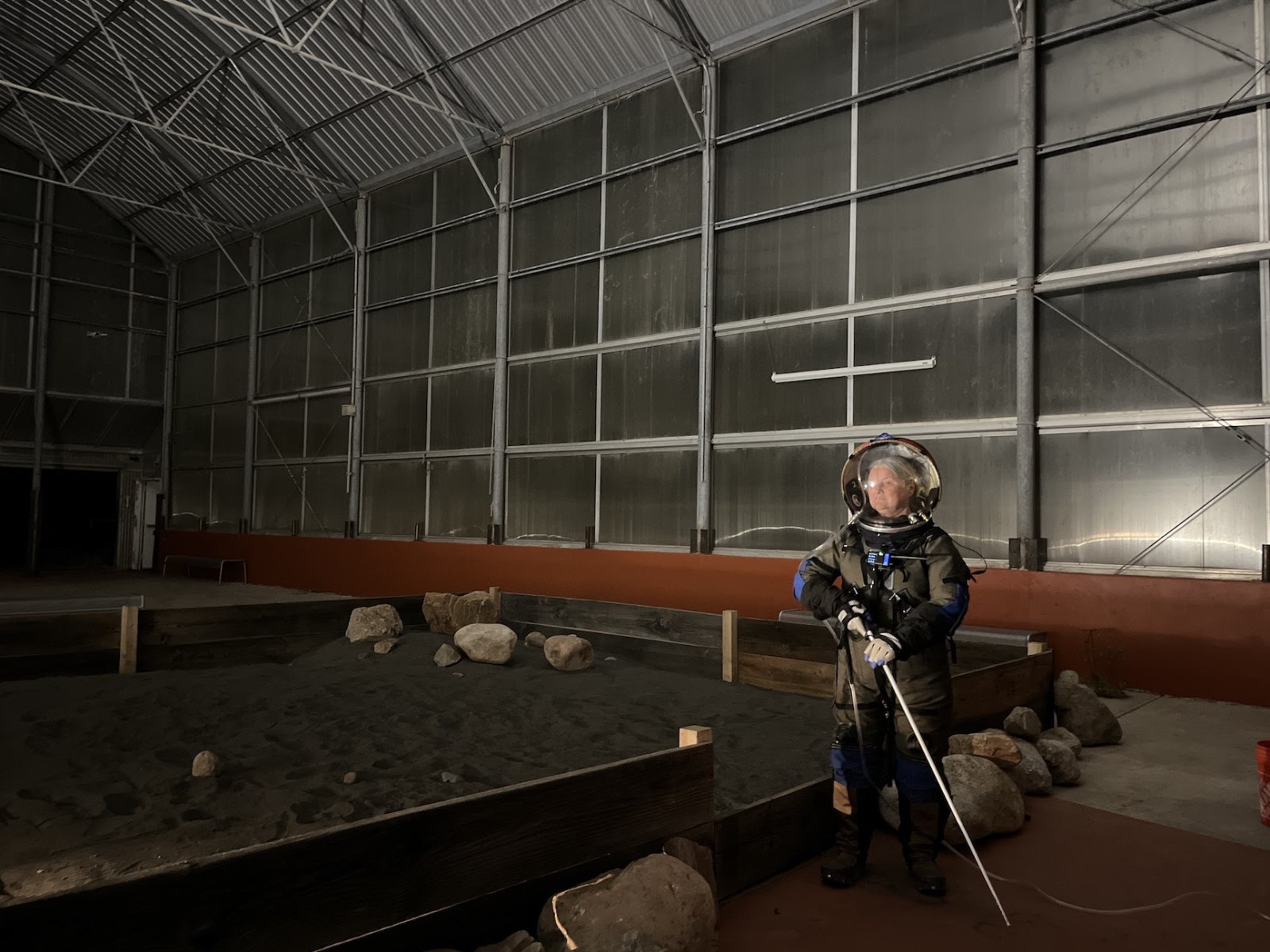

Through the roof!

Kai Staats removing an old panel from the Mars yard roof at SAM, Biosphere 2

While the Biosphere 2 was being built, a series of on-campus greenhouse structures, quarantine facilities, and insect farms were used to harbor the plants and animals collected from around the world. While in operation, some of these structures served as a botanical garden, a place for visitors to experience something similar to the Biosphere without being sealed inside. Last summer we removed five greenhouse structures to make way for the SAM outdoor Mars yard. Between this space and the Test Module remains a 6400 square foot greenhouse (that has seen better days). It is our intent to renovate this building, to become the SAM indoor Mars yard and terrain park. But first, we must replace the dilapidated plastic panels with a new, corrugated steel roof. This will serve the purpose of both protecting the Mars yard from the weather and minimizing the direct light and reducing the temperature in the warmer months.

This week saw Terry, Kai and Colleen engrossed from sunrise to sunset high above the concrete on a 45 foot cherry picker (a.k.a. “snorkel” or lift). While exciting to be 7-10 meters up, suspended on an incredibly powerful and precise articulated arm with six degrees of movement, it was an five exhausting days. The fumes of the diesel electric generator (which drives the hydraulic pump), the constant hum of the combustion engine and unceasing BEEP! with every motion of the vehicle up, down, left or right was tiring. The body’s adjustment to the constant motion of the bucket, as though standing on the deck of a sailing ship was enough to invoke a sense of unsteady legs and uneasy sleep when back on terra firma, as though returning from an ocean voyage and weeks at sea.

The panels were most often brittle and fractured, yet they remained resistant to this final effort to bring them down. With full body harnesses and tethers, helmets and gloves we pushed, punched, hammered, and sawed our way from one end of the greenhouse to the other a half dozen times to reach every corner. For Monday and half of Tuesday we moved along the outside north and south edges, reaching in to remove several rows of self-tapping screws from the plastic, aluminum, and steel interface. Wednesday through Friday we carefully navigated the lift through the interior of the building, ever so slowly rising, twisting, reaching through small corridors in the overhead frame, cables, and supports until the unnecessary debris and structure could be cut free.

Driving the lift became second-nature. Driving the wheels from nearly full extension was a testament to the design quality of the Genie. This journey was made complete with the installation of a new steel roof.

By |2024-06-28T18:35:05+00:00March 4th, 2022|Categories: Construction|0 Comments

Sometimes it just takes …

Fridge removal from the 40 footer at SAM, Biosphere 2

There are those projects that present a very real challenge. Shape, mass, and position fight with gravity, and even as the weakest of the forces, gravity always wins. A dozen solutions exist, yet none are straight forward. With each iteration, the solution gives birth to a problem only more complex.

Fridge removal from the 40 footer at SAM, Biosphere 2

Then one person says, “I know how to get this done. I’ll be right back.” The rest of the team members shuffle their feet, continuing to discuss alternatives. What, exactly, is he going to do? Best guesses are made, shoulders shrug, and we wait.

Fridge removal from the 40 footer at SAM, Biosphere 2

The plan is laid down. Again, we walk through the concept from start to finish. One by one, each team member contributes. It appears no one will get squished, which is good. Ideas are bounced, voices heard, and improvements are made. Confidence increases, even if some doubts remain.

Fridge removal from the 40 footer at SAM, Biosphere 2

The physical implementation of the plan is invoked. A tailgate lift is placed to take the weight. Tow straps are secured. Ropes are made to function as make-shift block-n-tackle for a 2:1 increase in force; looped, tested, and tied off. Everyone is ready, ready for the plan … and if the plan doesn’t go as planned.

Fridge removal from the 40 footer at SAM, Biosphere 2

A visiting professor lends a hand at a most opportune time, with borrowed gloves and a can-do smile. In this moment the adventure in applied physics outweighs the concerns for things going wrong. We narrow the communication to specifics, gas pedal is engaged, and the massive cooling assembly at the end of the 40′ container is released from its frame.

Fridge removal from the 40 footer at SAM, Biosphere 2

It works! Sighs of relief are audible, accompanied by nodding, and laughing, recounting the effort as though a battle had been won. Gratitude for the bold approach is shared and a conclusion expressed, “Well, sometimes, you gotta just go for it.”

By |2022-03-09T16:52:34+00:00March 1st, 2022|Categories: Construction|0 Comments

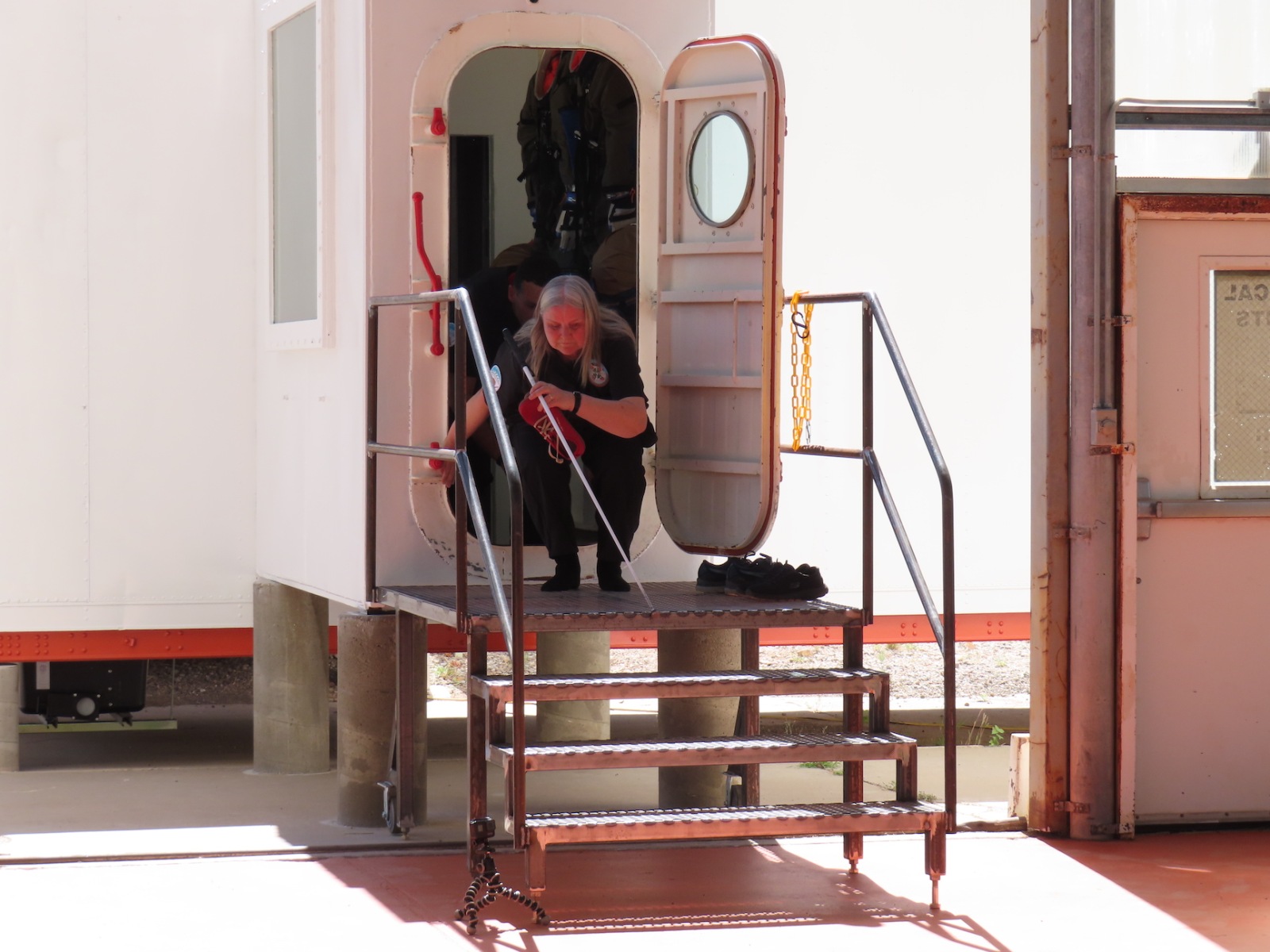

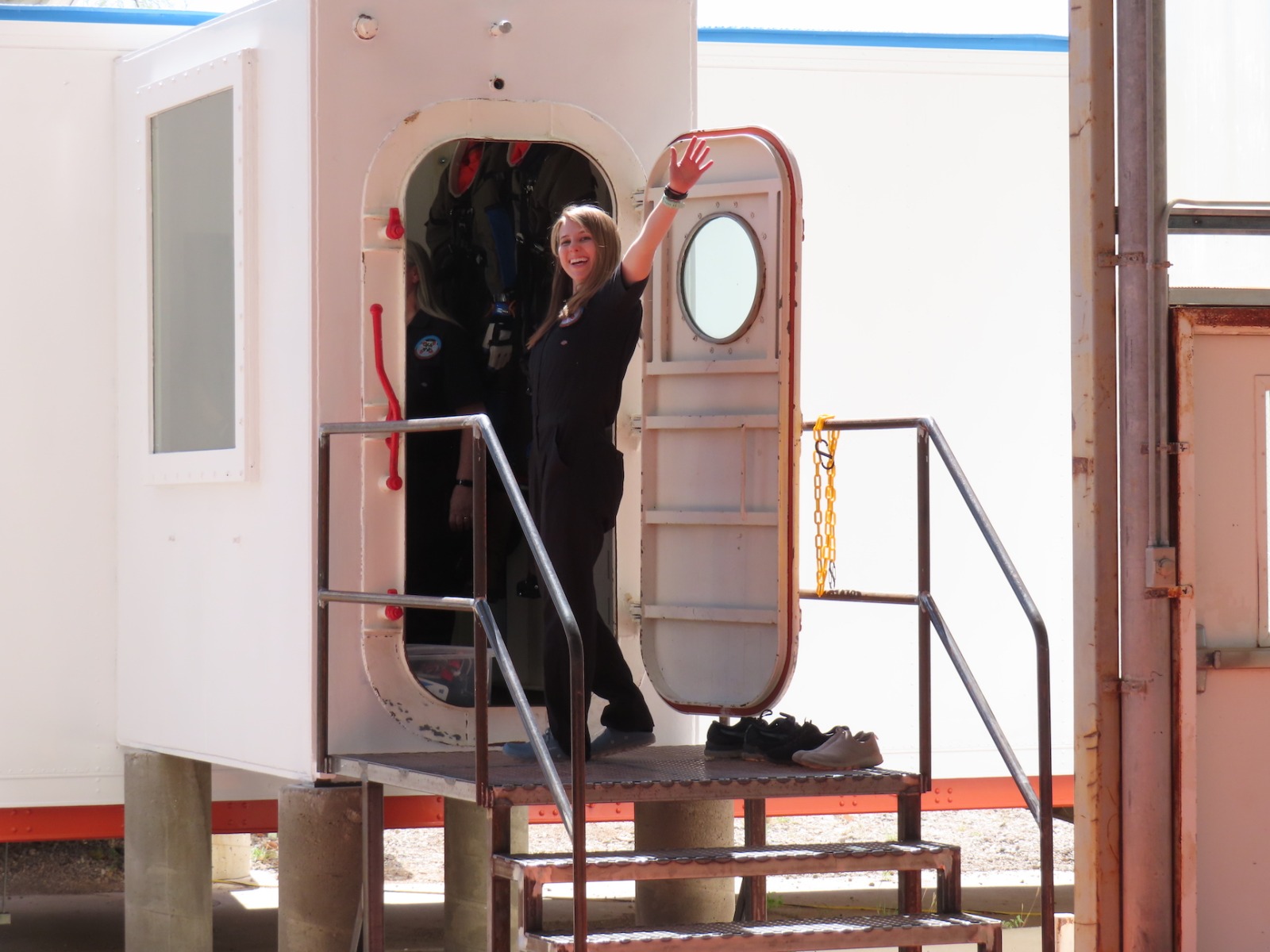

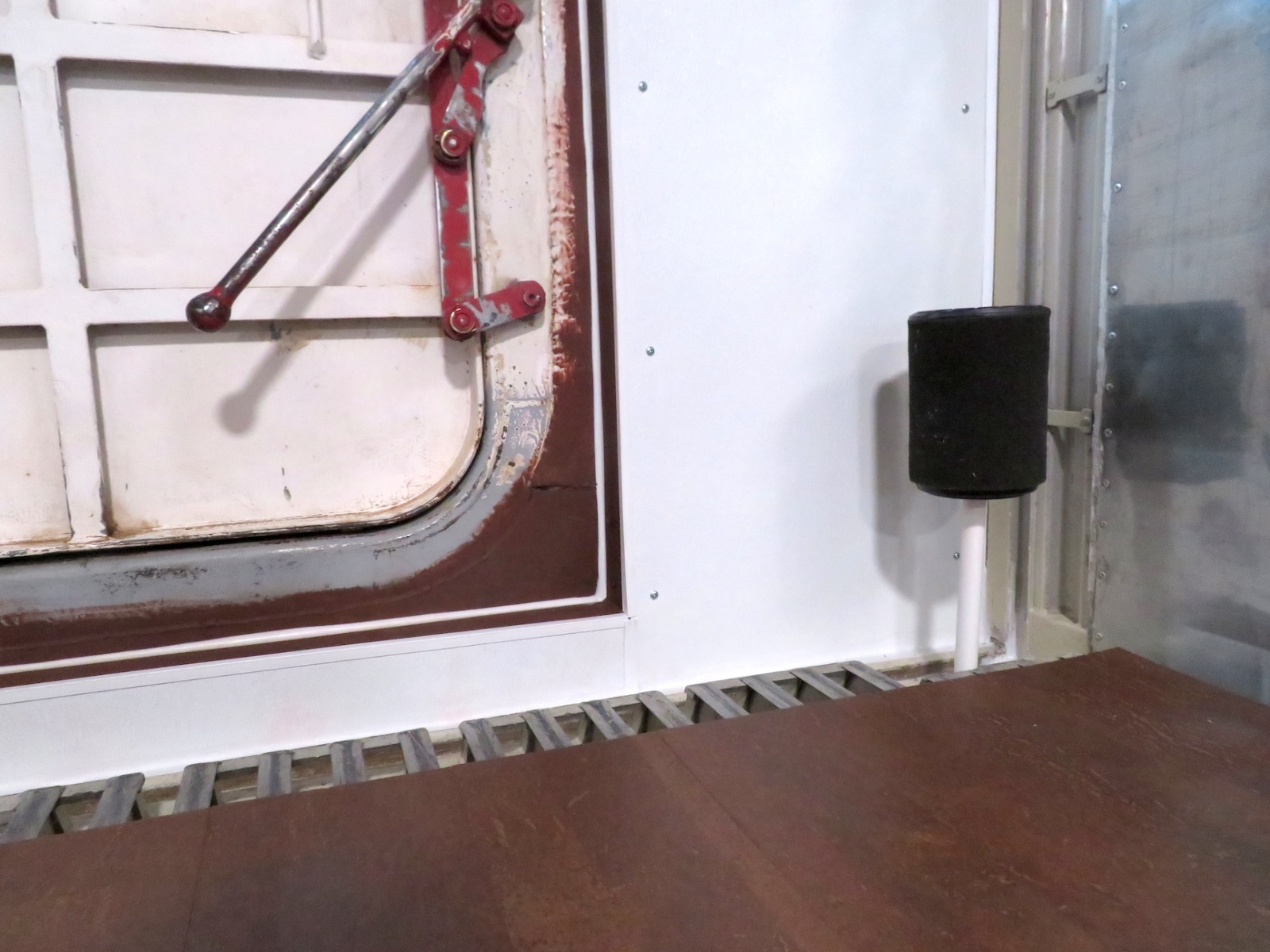

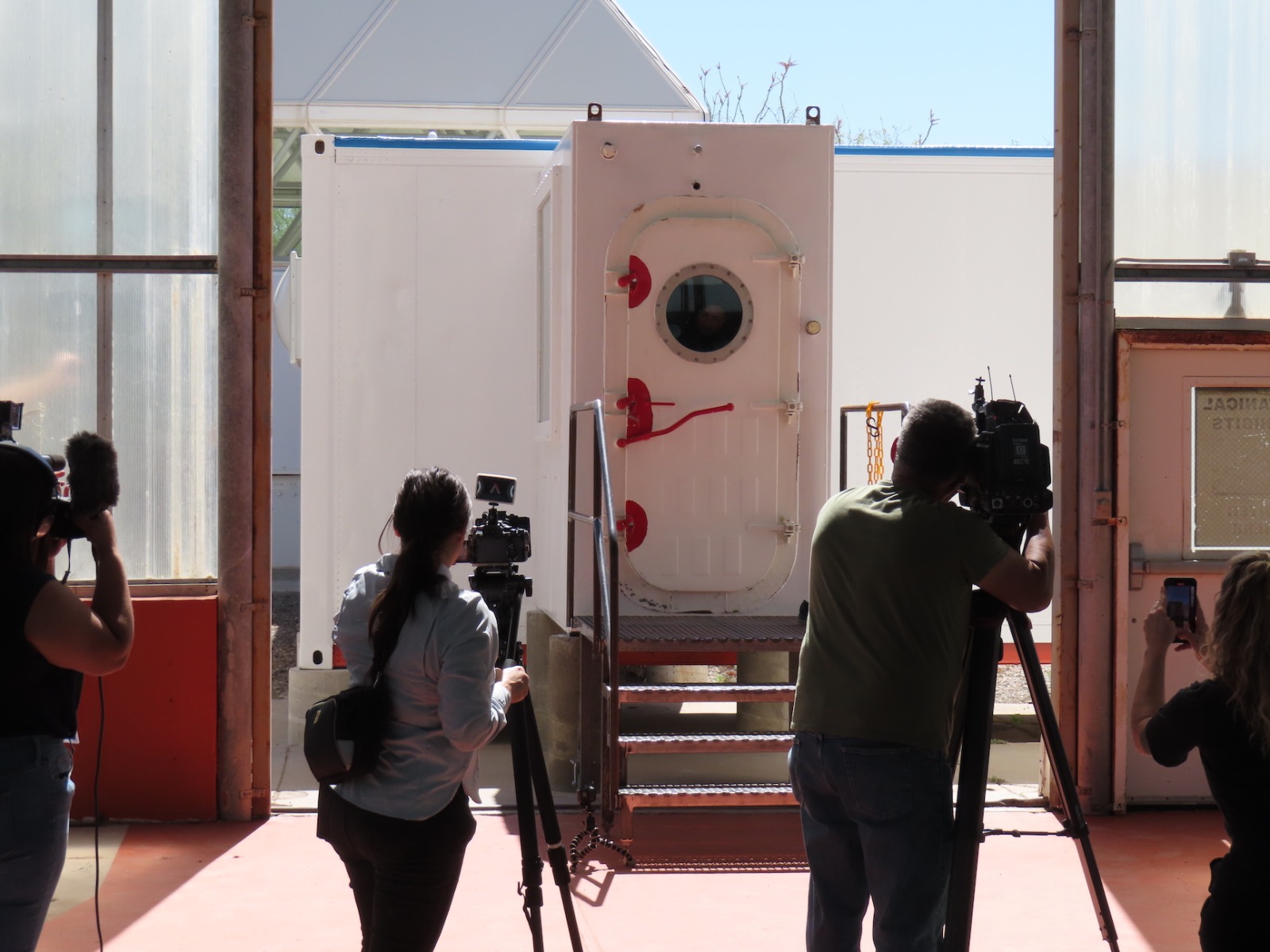

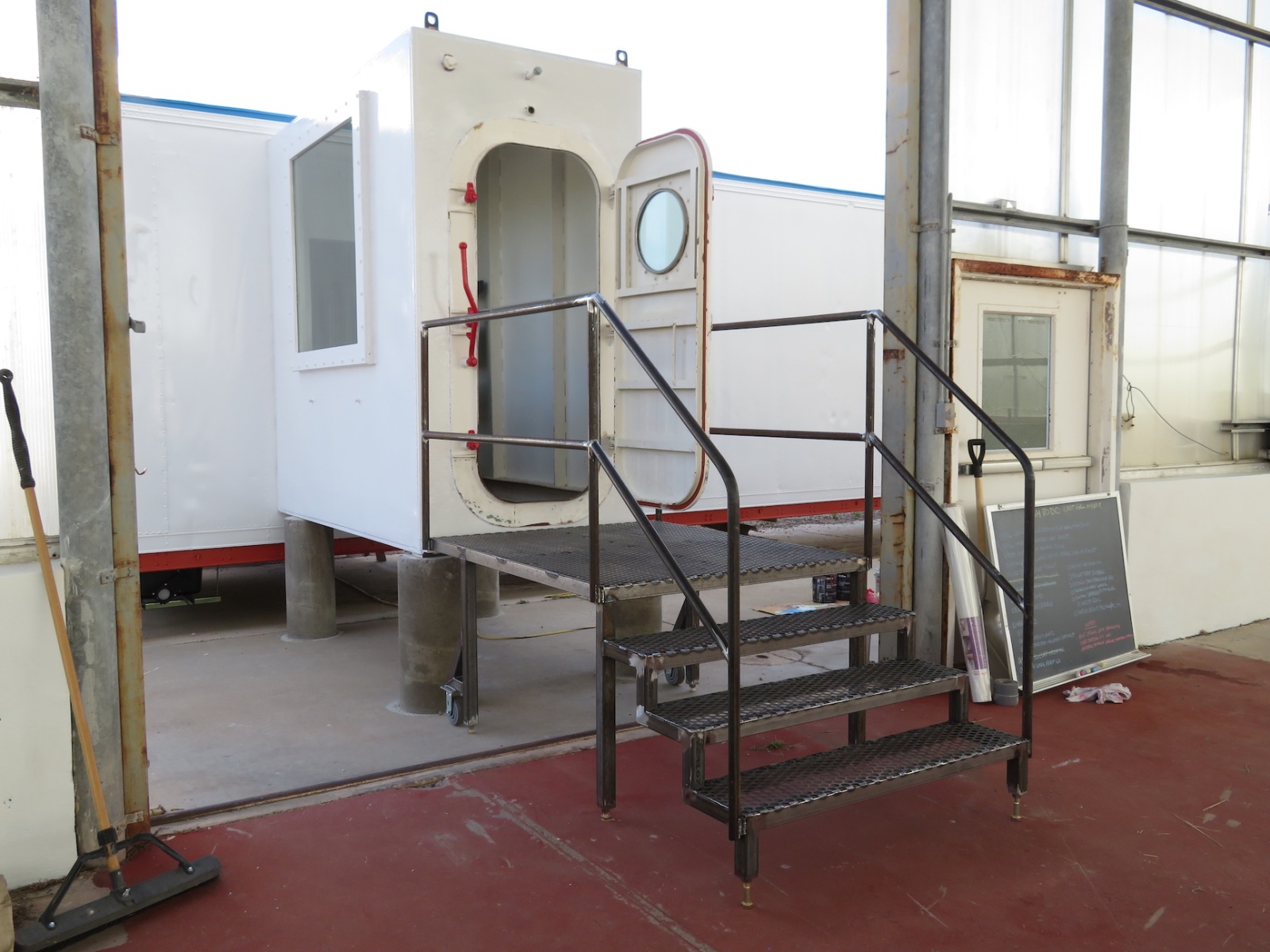

The airlock is installed!

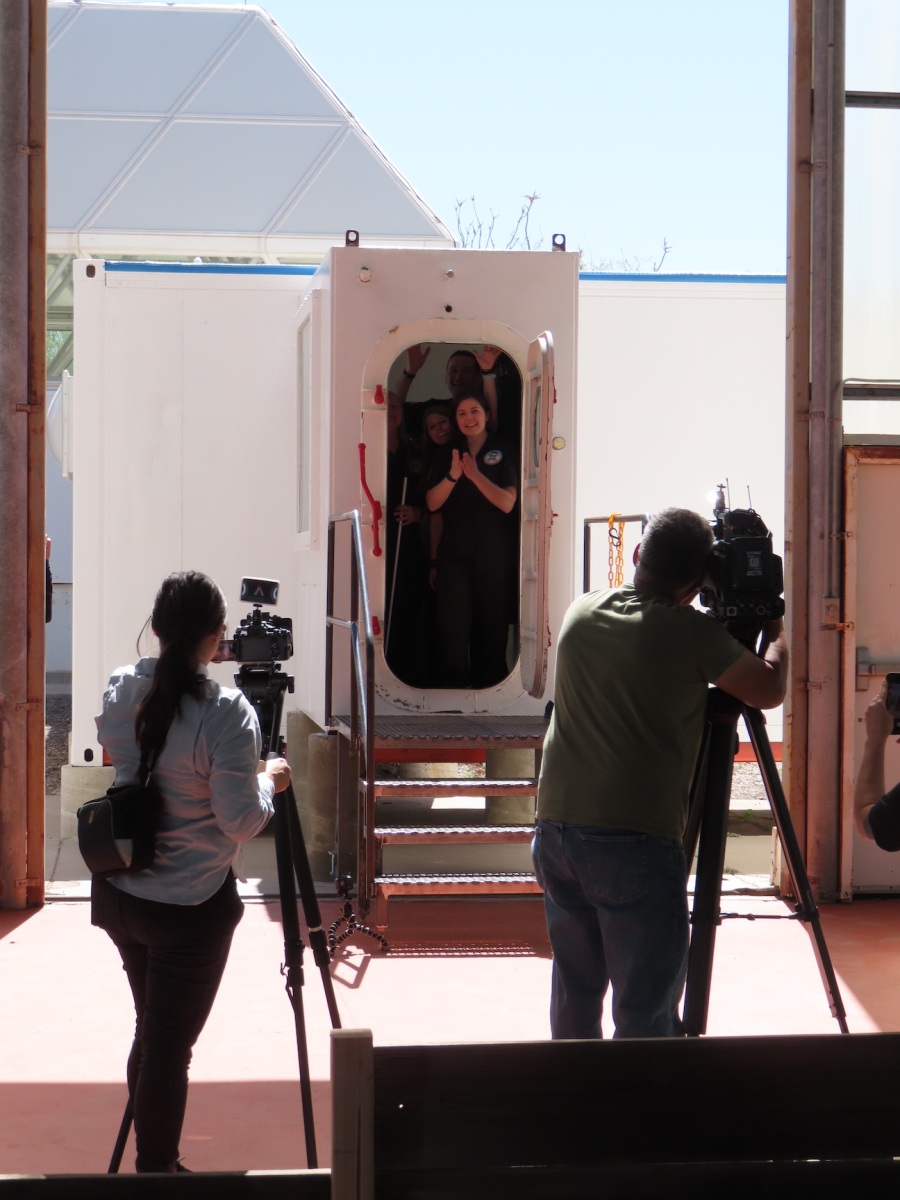

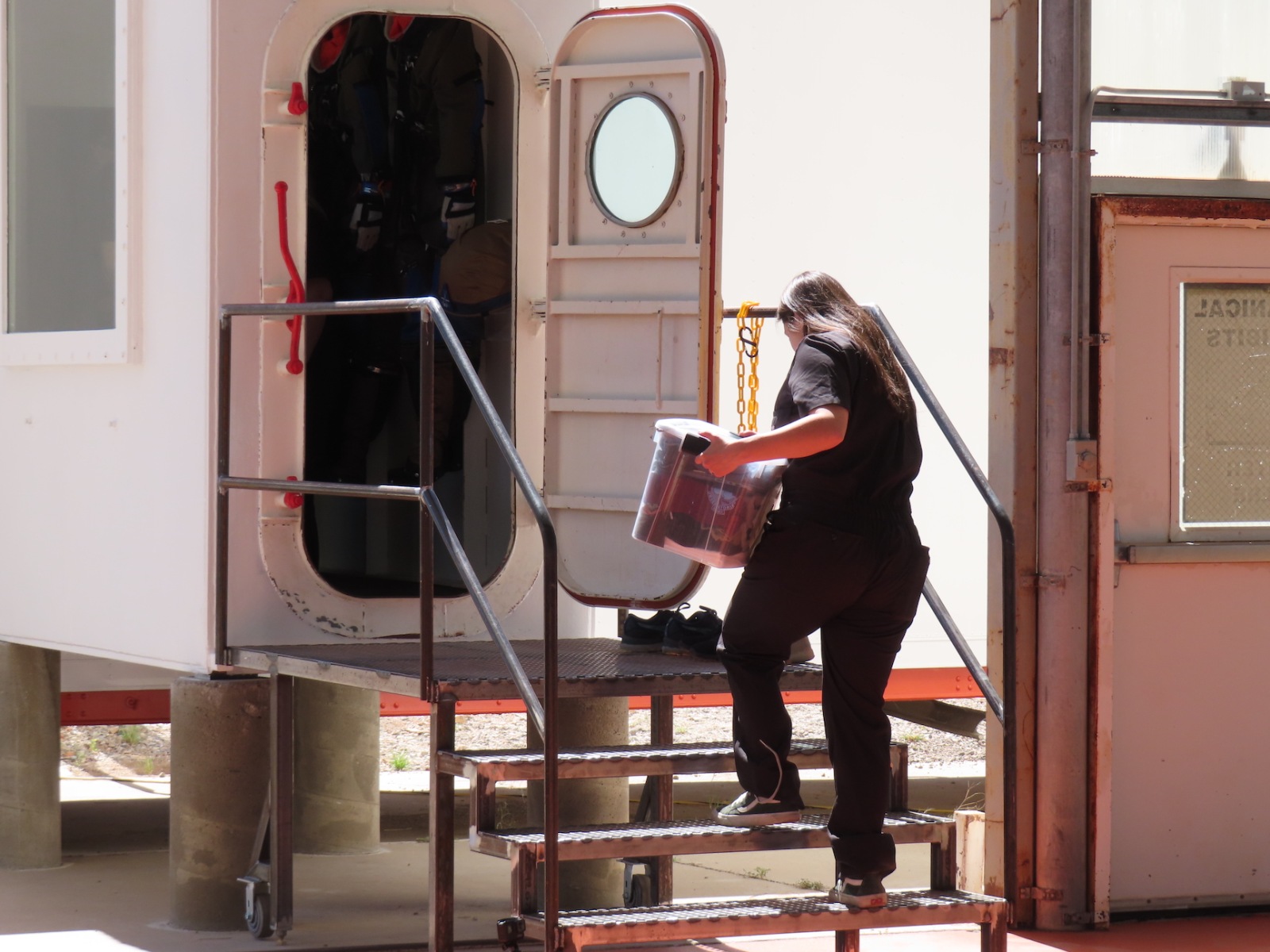

Airlock to SAM at Biosphere 2

Following a year of imagination, three weeks preparation, and a beautiful snowstorm the night before, Steve, Kevin, Tim, Terry, Amin, Colleen and Kai were successful in moving the airlock from the basement of Biosphere 2 to the new concrete pads, and then securing it to the side of the future crew quarters at SAM.

As noted in prior posts (Preparation, Concrete, and Pen & Pad), this was a significant engineering effort as we worked to find a way to merge a 30 year old, steel airlock chamber with the exterior aluminum wall of a new shipping container. While the weight of the airlock is held entirely by the new concrete pedestals, we had to bring the interior frame of the airlock box into an airtight interface to the exterior wall of the shipping container. As they are dissimilar materials (steel, aluminum) welding was not an option. Furthermore, we discovered that the silicon-rubber seal held between the airlock and the bulkhead wall in the basement of Biosphere 2 was yet pliable and fully functional. We left it in place, lightly cleaning the exposed face.

With careful placement by Tim at the wheel of the rented forklift, the 3000+ lbs airlock was moved a quarter mile from Biosphere 2 to SAM, and then to within 1/16″ of our desired location, pressed against the exterior wall of the container such that the silicone-rubber was touching at the bottom and lower sides. However, we discovered that the wall of the container was not fully vertical, slanting in 1/4″ over the total 9 foot rise. Furthermore, the airlock container was not square, one of the four corners was not touching the perfectly level concrete pedestals. We cut aluminum shims to make certain all four corners are equally load bearing, and to tilt the unit backward just a bit, enabling the silicone-rubber joint to be evenly pressing against the exterior wall of the container.

Kai drilled nineteen holes through the 3.5″ assembly of aluminum skin, insulation, stainless steel interior, and the newly fabricated 1/4″ steel plate which holds the frame for the interior pressure door. Using the original bolt holes and pattern of the airlock itself, nineteen 5″ bolts work to compress the silicone-rubber seal between the shipping container and airlock frame. Next, we will shave any exposed silicone-rubber to be level with the metal edge, and then cover with the Dow-Corning 795 silicone product that has proved itself over 30 years at the Biosphere 2.

As with any project in which old and new parts are assembled, there will be surprises. But in the end, we were able to make it work perfectly.

By |2022-03-03T05:45:32+00:00February 24th, 2022|Categories: Construction|0 Comments

Preparation for the airlock installation

John Z and Colleen cleaning the airlock pressure plate at SAM, Biosphere 2 Kai painting the airlock pressure plate at SAM, Biosphere 2

Kai cutting the airlock entry at SAM, Biosphere 2 Amin grinding the heads off rivots at SAM, Biosphere 2

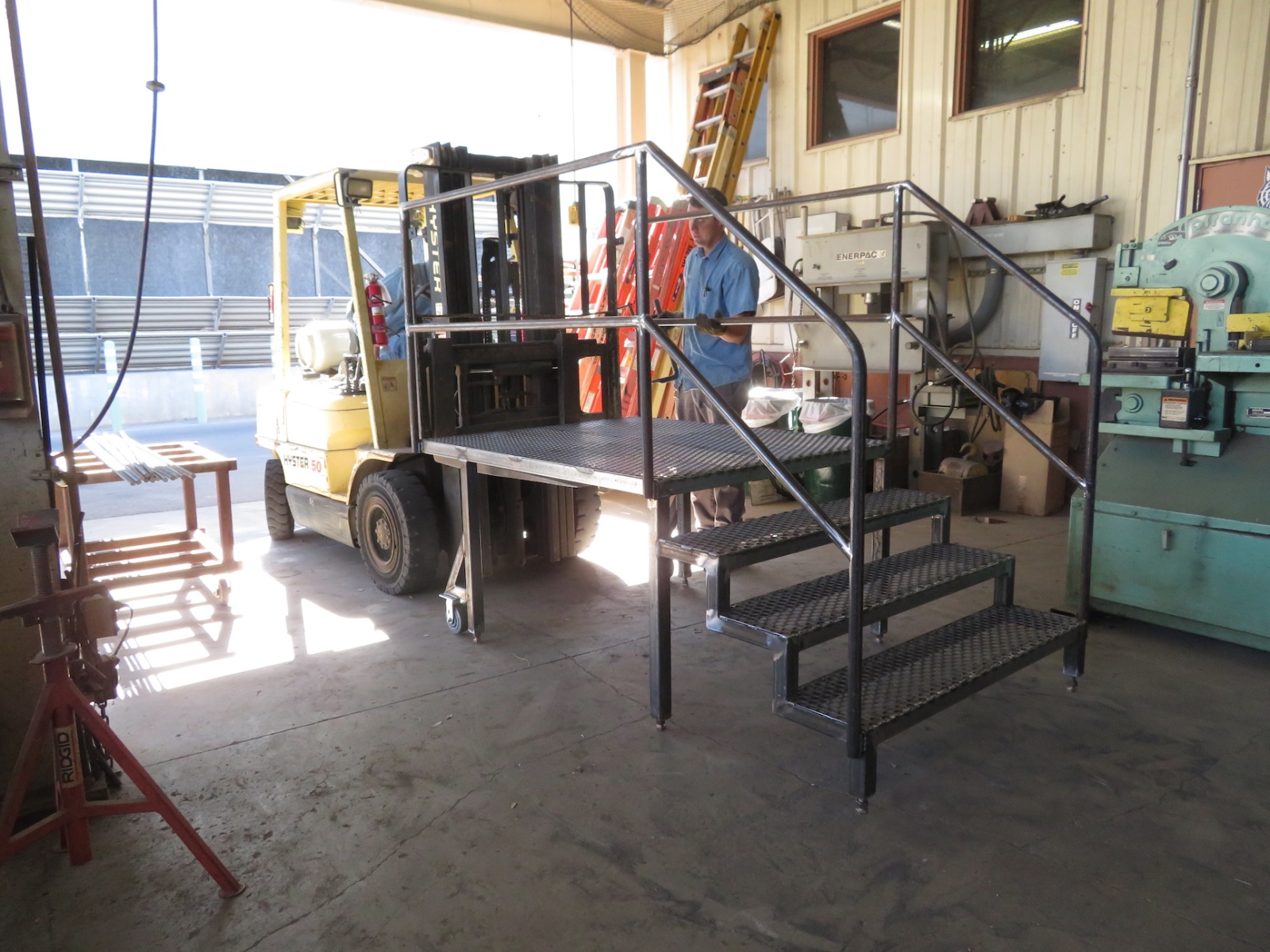

The University of Arizona Facilities Metal Shop completed the custom pressure plate based upon our design. Now we learn if our careful measurement, sketches, and computer layout were accurate. If designed correctly, this steel insert will distribute the load of the airlock attachment across the otherwise relatively fragile foam-filled sheet aluminum and corrugated steel walls of the insulated shipping container. With 19 five inch bolts across the top, left and right of the frame, we anticipate a rigid interface to hold the interior pressure door of the crew quarters airlock and primary entrance to SAM.

Colleen and John Z. cleaned the residual oil from the surface. Kai follows with a coat of a rust inhibiting primer. Amin and Kai conduct the final cuts and grinding to prepare for removal of the insulated wall unit and installation fo the airlock. Will it all come together? Will everything line up just right?

This particular story began with Pen & Pad, continued in Concrete, and concludes with Airlock Install.

By |2022-10-28T05:03:14+00:00February 22nd, 2022|Categories: Construction|0 Comments

Clearing a new path to SAM

Colleen, John Z. removing window scaffolding at SAM, Biosphere 2

With the concrete footings in place to hold the airlock it is no longer possible to drive from the main road into the large greenhouse / soon to be Mars yard. Therefore we endeavor to clear an old semi-paved path on the south side of the greenhouse structure to the concrete slab south of the Test Module lung. This space is, in theory, large enough for a concrete truck to enter, and for a cherry picker to turn about.

The effort was initiated in December with the removal of a few trees and brush, and continued with the total clearing of the landscape, and subsequent disassembly of the scaffolding and machinery used to open and close two rows of greenhouse shutters. The two south side rows are now screwed shut so as to not buffet in the wind. The upper of the two rows on the north is also removed and secured. We cut the steel poles down to retain only the lower row of articulating louvers such that we can yet invoke a cooling draft in the near-future Mars yard, when coupled with the electric fans that remain in the overhead structure.

The end effect is a drastic improvement in aesthetics, form, and function.

This week we welcome our new volunteers John Zelenky and Admin Mody! John is a former high school physics instructor and collegiate football player who’s keen eye for detail, understanding of applied force, and raw strength are a welcomed measure at SAM! John will be with us on a regular basis, Tuesday and Thursday mornings. Amin will be at SAM for a week, en route from Portland Oregon and the Pacific Spaceflight group to a new job in Houston, Texas. Amin holds a Masters degree in Bioastronautics from the University of Colorado, Boulder. em>Welcome!

By |2022-07-11T23:45:29+00:00February 17th, 2022|Categories: Construction, Visitors to SAM|0 Comments
